Linear Multi-Code 109020 308911 300 MHz Garage Door Receiver and Remote Set
| from 2 pcs. |
|---|
Availability: 53 in stock

Better value available
- Description
- Reviews
- Q&A
Upgrade your existing garage door opener or automatic gate system with the genuine Multi-Code 109020 Receiver and 308911 Remote Control Set. Operating on the dependable 300 MHz frequency with a matching 10-position DIP switch coding system, this complete kit allows you to replace outdated or failing radio controls on virtually any garage door operator or access gate.
The 1-channel receiver easily wires into standard 24VAC operator terminals or external power transformers, while the included 308911 visor transmitter provides secure, long-range wireless activation. Both units feature matching 10-switch code blocks for straightforward, manual programming.
Direct Replacement & System Part Numbers:
- Manufacturer Part Numbers: 109020, 1090-20, 308911, 3089, 1090
Opener & Gate System Compatibility (300 MHz / 10-Position DIP Switch Only):
Compatible with any residential garage door opener, commercial door operator, or automatic gate system utilizing 300 MHz Multi-Code radio controls:
- Multi-Code / Linear Receivers: 1090, 109010, 109020.
- Compatible Transmitters: Multi-Code 3089, 3060, 4120, 4140, and 1089 10-position switch remotes.
Product Features & Specifications:

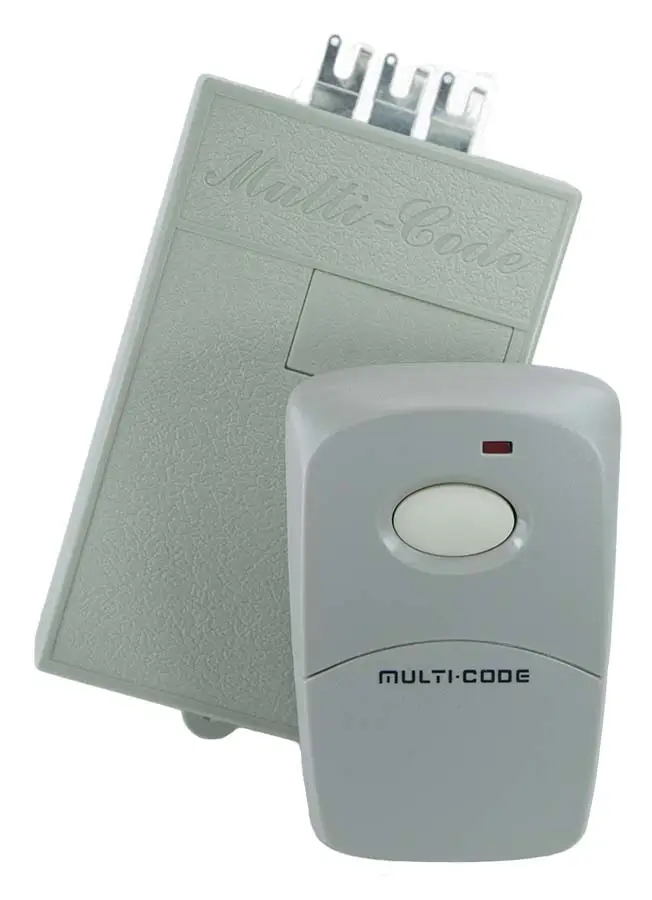

- Complete Upgrade Kit: Includes one (1) 300 MHz receiver and one (1) matching 1-button visor remote control.
- 10-Position Coding Switch: 1,024 possible code combinations to prevent cross-talk and unauthorized access.
- Universal Operator Wiring: Wires easily into standard 24V operator terminals or optional plug-in transformers.
- Flexible Antenna: Includes an 11-inch flexible wire antenna for optimal signal reception.
- Power Source: Receiver operates on 24VAC; remote includes a 9V battery.
- Included Accessories: Receiver unit, wire antenna, visor remote clip, pre-installed battery, and instructions.
- Warranty: 1-Year Manufacturer Warranty.
Important Compatibility Exclusions (Will NOT Work With):
- High-Voltage Power Sources: The included receiver operates on 24VAC; it will NOT wire directly into 120V line-voltage power supplies without a step-down transformer.
- Rolling Code Transmitters: The receiver will NOT program to handheld remotes using rolling code technology (such as LiftMaster Security+ or Genie Intellicode).
- Differing Frequencies: Incompatible with existing 310 MHz, 315 MHz, 318 MHz, or 390 MHz remote controls.
This unit operates on standard 9 volt batteries. Under normal daily use, a fresh battery delivers reliable performance for 12 to 24 months before requiring replacement.
