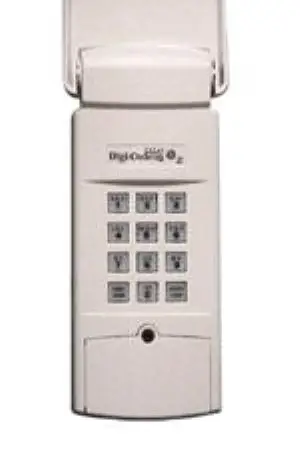

Digi Code 5200 300 MHz Wireless Keypad

The Digi Code 5200 will work with the following wireless receivers.
-Digi Code: 5100, 5100D, 5110, 5120, and 5150
-Multi Code: 1090, 1099, 3028, 3021, 1090-20, 1099-20, 1099-50, 3028-50, and 3021-01.

Digi Code wireless keypad is also compatible with the following remote controls:
-Multi Code 3089, 4120, 4140, 3060, 3070, 3083, 308911, 412001, 414001, 306001, 307001, 308301, MCS308911, MCS412001, MCS414001, MCS306001, MCS307001, and MCS308301
-Eagle EG 140, EG 144, EG 148 AND EG 152

Features:
-Directly compatible with the Multi Code 4200 Wireless Keypad

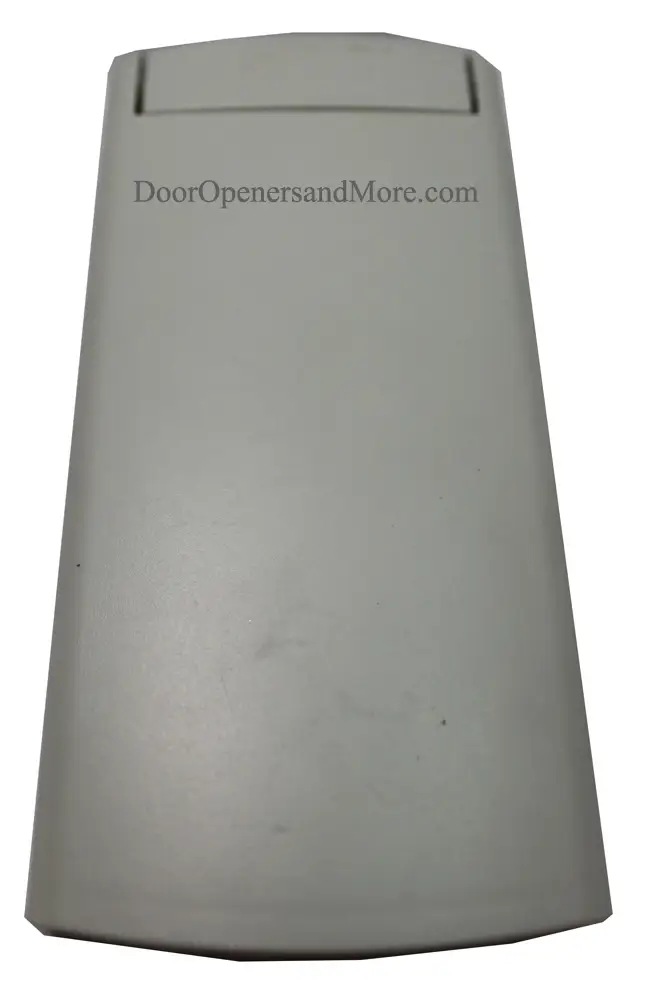

-Flip lid design protects keypad from the elements.
-Mounted outside the garage door or gate, these tamper-resistant, weatherproof, programmable
-Keyless Entries offer convenient access without having to carry a transmitter.
-Handy for gardening or doing outside work when you wouldn’t normally be carrying a transmitter.
-Private code can be set by user.
-The keypads are a wireless unit, powered by a 9-volt alkaline battery.
-DC 5200 operates all Digi-Code and Multi Code 300MHz Receivers.
-1024 dip switch codes  -Includes battery, mounting screws, and programming manual
-Dimensions: 3″ by 6.5″ by 1″

PROGRAMMING MANUAL
