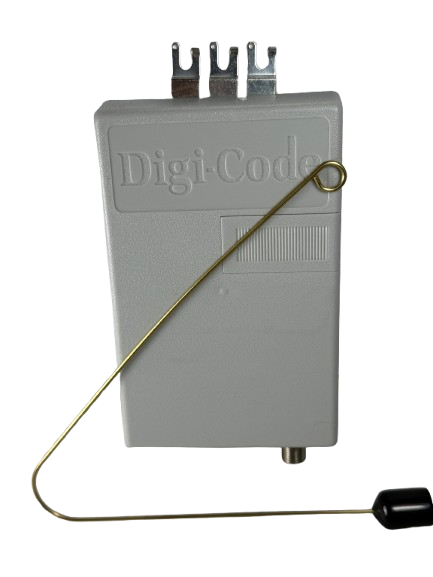

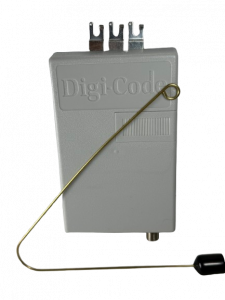

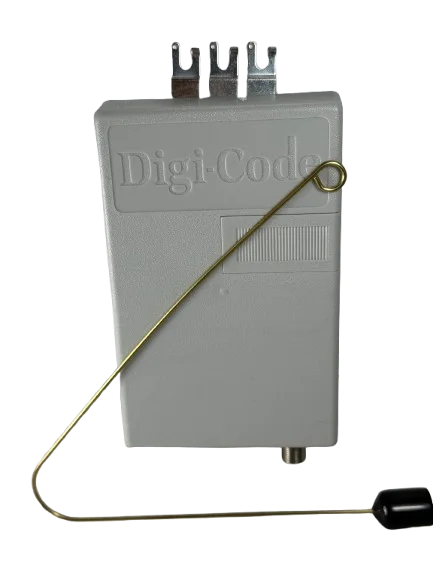

Digi-Code 5100A 300/310 MHz 3 Tab Radio Receiver with F Connector Antenna

Product Model -5100

17% OFF

from 2 pcs.
~~US $37.50~~ US $36.00

2 or more US $36.00

Availability: In Stock

US Shipping – FREE | Canada Shipping – US $15.50

(Quantity shipping discount applied at checkout)

Availability: 44 in stock

2 or more US $36.00

Description
Reviews
Q&A

The Digi-Code model 5100A is a Single Channel Radio Receiver that is designed for use in residential garage door operator applications. The Digi-Code 5100A is perfect for retro fit applications where your remotes aren’t working like they once did, but the opener still works great. This unit does include a 6 inch wire whip antenna for extended range, but you can also install the Digi-Code 5166 16 Foot Antenna Extension Kit to this receiver to extended the range.

Installation in most applications is a simple process, just mount the Digi-Code receiver to the 3 screw terminals on the back of your garage door opener. Once the receiver is mounted simply set the 10 on/off switches to match your compatible 300 or 310 MHz remote control and you’re ready to go.

Please note: If your opener has 2 or 4 terminals you will want to add the 3 Tab to 2 Terminal Adapter to your order as in many cases the unit will not work without it in these applications.

The Model 5100A is compatible with 300 or 310 MHz Digi-Code or Multi-Code type transmitters that have 10 ON/OFF dip switches.

Product Features

Operates on 12 or 24 VAC or VDC power

One channel allows control of one garage door opener

1,024 possible codes

Selectable RF frequency: 300 or 310 MHz

Includes 6 Inch Wire Whip Antenna

Dimensions: 6″ b 3.125″ by 1.25″ inches

Two year manufacturers warranty

–MADE IN THE USA
