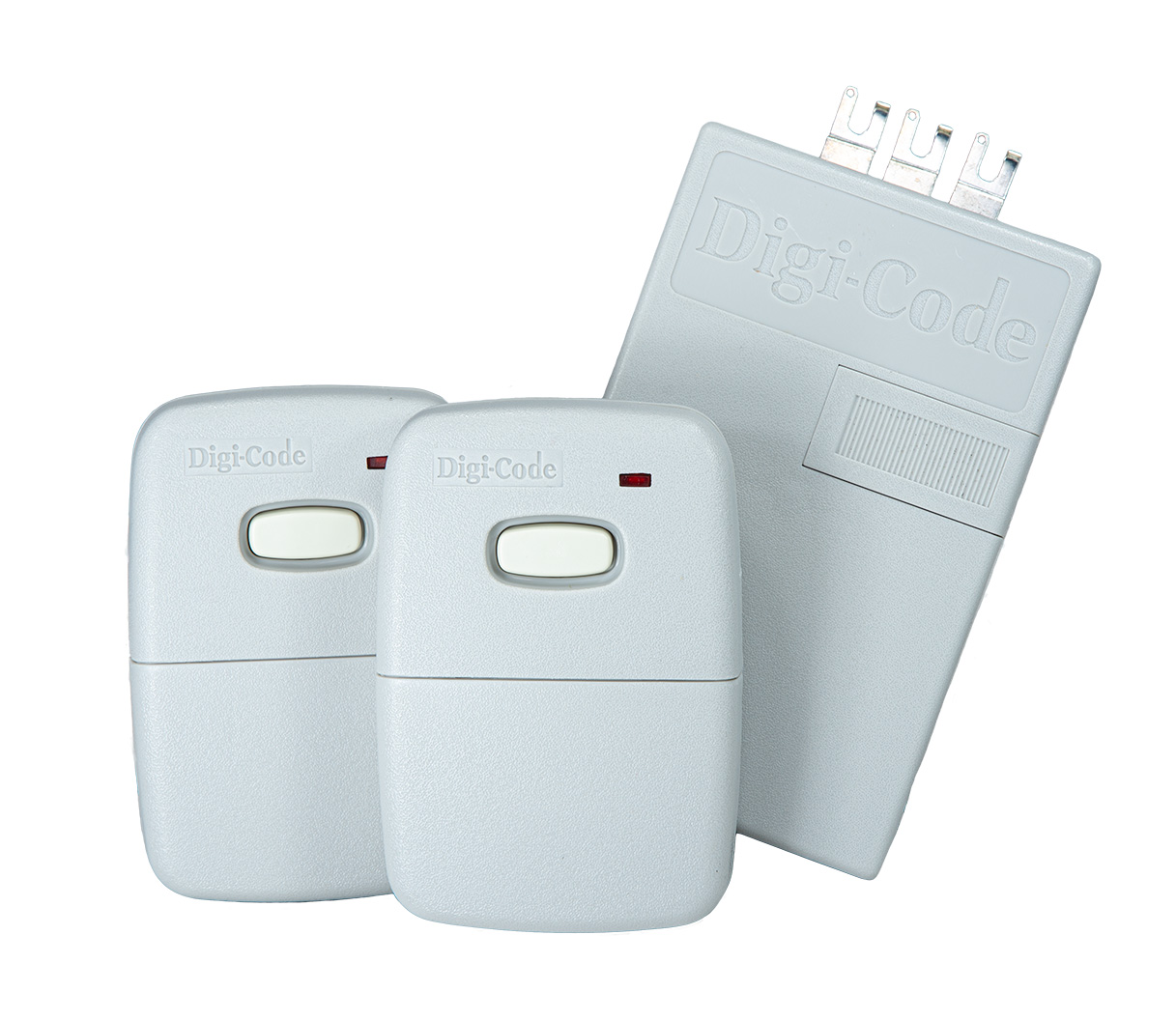

Digi-Code 300 MHz Garage Door Receiver Remote Set (DC5100 & Two DC5010)

Upgrade or replace failing garage door radio controls with the genuine Digi-Code 300 MHz Replacement Garage Door Receiver and Remote Set. This complete kit includes one Digi-Code DC5100 3-tab 24V radio receiver and two Digi-Code DC5010 1-button visor remotes, providing a cost-effective solution for operating older garage door openers without spending a fortune on a total replacement.

Designed for seamless compatibility with 300 MHz Multi-Code systems, the 3-tab 24V receiver mounts directly to standard 3-terminal motor heads or accepts a push-on wire harness for remote placement. Matching 10-position DIP switches inside the receiver and transmitters make system setup fast and straightforward.

Direct Replacement & Kit Component Model Numbers:

• Kit Component Model Numbers: DC5100 / 5100 (3-Tab 24V Receiver), DC5010 / 5010 (1-Button Visor Remotes)
• Cross-Reference Compatibility: Replaces Multi-Code 1090, 109010, 109020 receivers and 3089, 308911, 1089 transmitters

Opener & System Compatibility (300 MHz / 10-Position DIP Switch Only):

Compatible with residential garage door openers equipped with standard 3-terminal screw connections (supplying nominal 24V power) or 300 MHz Multi-Code radio systems:

• Multi-Code / Linear 300 MHz Systems: Fully compatible with Multi-Code 10-position binary switch remotes and receivers.
• Terminal Requirements: Mounts directly onto openers with 3 terminal screws on the rear. (Openers with 2 or 4 terminals require a 3-tab to 2-terminal adapter).

Product Features & Specifications:

• Complete Value Bundle: Includes one (1) DC5100 3-tab receiver and two (2) DC5010 single-button visor remotes.
• 3-Tab Direct Mount: Connects straight to 3-terminal opener heads without needing a separate transformer or power supply.
• 10-Position DIP Switch Block: Delivers 1,024 manual code combinations to prevent signal overlap.
• Made in USA: Manufactured in the United States with heavy-duty commercial-grade components.
• Power Source: Receiver powered by 24V opener terminals; remotes each include one (1) 9V battery.
• Dimensions: Receiver: 6″ x 3.125″ x 1.25″ | Visor Remotes: 3.75″ x 2.5″ x 0.875″
• Included Accessories: Receiver, 10-inch wire antenna, two visor remotes, visor clips, two 9V batteries, and instructions.
• Warranty: 2-Year Manufacturer Warranty.

Important Compatibility Exclusions (Will NOT Work With):

• 2-Terminal or 4-Terminal Openers: Will NOT wire directly to garage door openers featuring only 2 or 4 terminals unless paired with a 3-tab adapter module.
• High-Voltage Lines: Receiver operates on nominal 24VAC/DC; will NOT connect directly to 120V power supplies.
• Rolling Code Transmitters: Receiver will NOT program to rolling code remotes (such as LiftMaster Security+ or Genie Intellicode).
• Differing Frequencies: Incompatible with 310 MHz Stanley, 315 MHz, 318 MHz, or 390 MHz remote controls.
