Linear AK 11

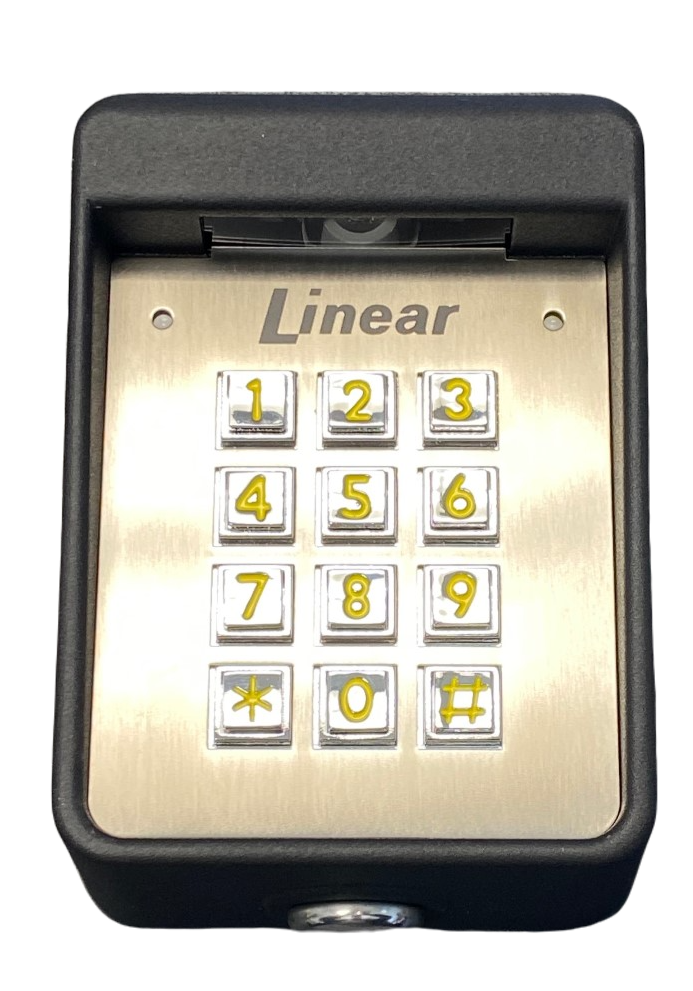

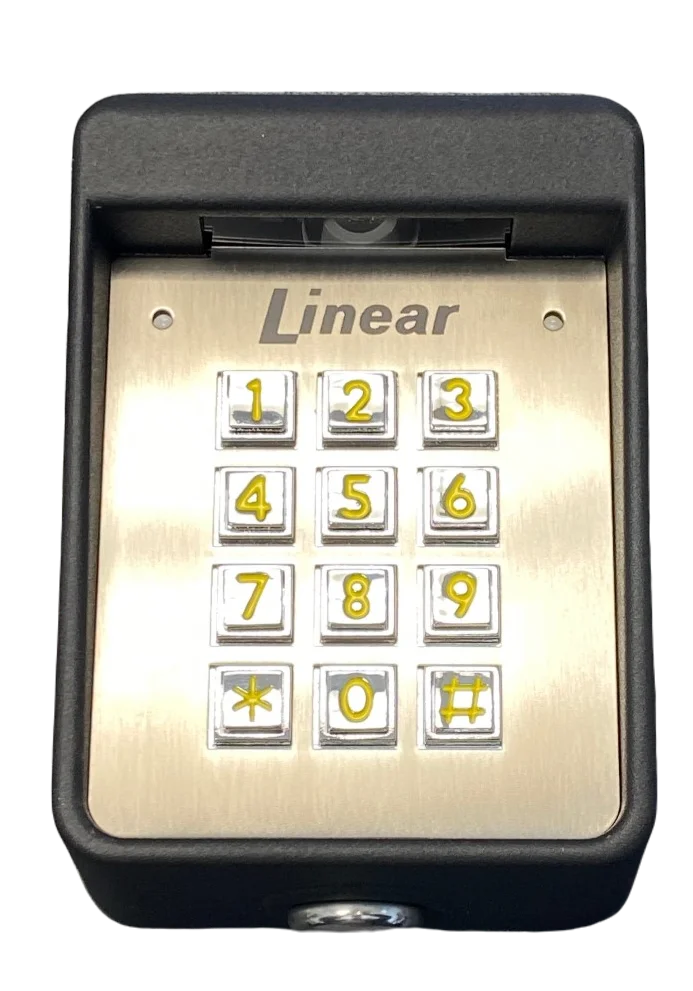

The Model AK-11 Exterior Digital Keypad is a digital keyless entry system designed for access control applications. The keypad is housed in a rugged cast aluminum enclosure that can be mounted to a pedestal or bolted directly to a wall. The die-cast keys have bright, easy-to-read yellow graphics.

Up to 480 entry codes, from 1 to 6 digits in length, can be programmed. They can activate either, or both, of the relay outputs. Relay #1 has a 5 Amp capacity. Relay #2 has a 1 Amp capacity. The relays can be set for timed or latch-on/latch-off toggle operation per each individual entry code. The on or off toggle state of a relay is maintained even after power interruption. When power is restored to the keypad, each relay will assume the state it was in when power was removed.
